Simcenter 3D
Simcenter 3D is a complete, fully integrated product performance CAE solution for complex, multidisciplinary engineering. The software offers revolutionary improvements in simulation efficiency. With advanced 3D modeling capabilities and simulation solvers that cover a wide range of physics, Simcenter 3D helps you gain better insight into your product's overall performance. This is achieved through a fully integrated and managed yet open environment where you perform all pre and post CAE processing on CAD data from any source for Simcenter and third party solvers . Connected to the digital space, engineers and analysts can collaborate on a platform that accommodates all aspects of functional performance.
Clique na área de seu interesse
Pre/
post processing
Mesh
Structural analysis
Simulation of Aerostructures
Composites
Durability simulation and fatigue analysis
Electromagnetic simulations
Motion simulation
Multiphysics Simulation
Acoustic Simulation
thermal simulation
Parameterization
Simulation automation and scalability

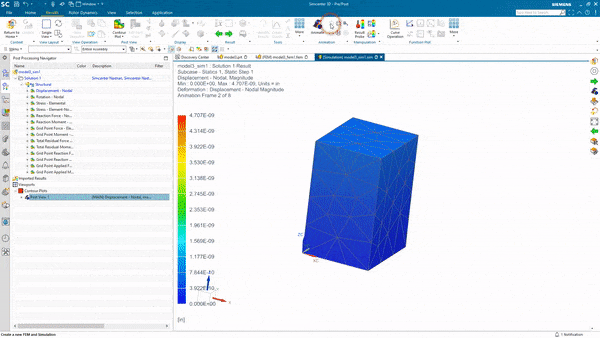

Reduce time spent preparing analysis models and spend more time evaluating results. Quickly move multi-CAD geometry data from a complete, ready-to-run analysis model using unique tools for CAE geometry editing, meshing, FE assembly management, multi-CAE solvers and post-processing environments, and performance reporting. fast simulation results.

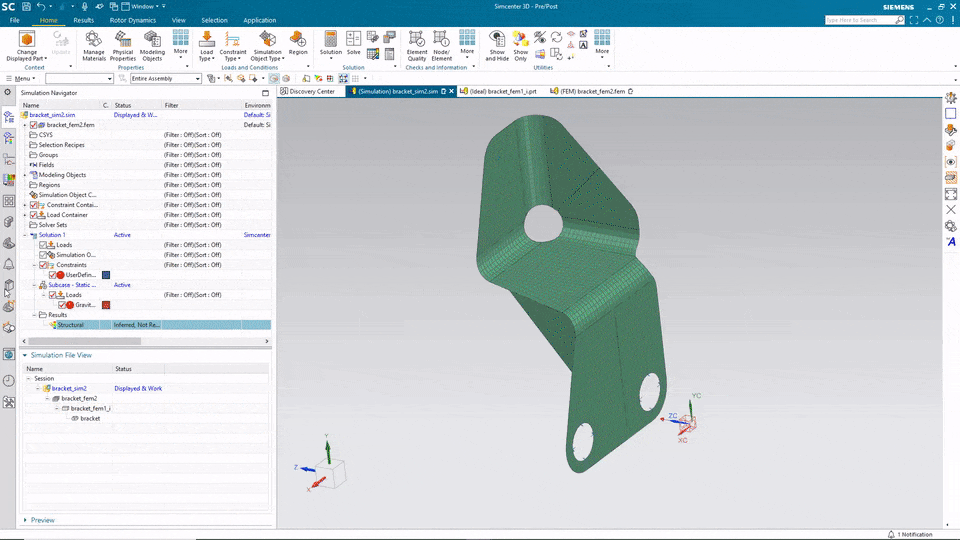

Efficiently mesh your models using comprehensive modeling functions for automatic and manual meshing of 1D, 2D, and 3D elements, as well as numerous techniques for applying loads and boundary conditions. User-defined geometry edits, meshes, and boundary conditions are all tied to the 3D model, which means that when the base design geometry changes, you can quickly update your model. This approach greatly reduces setup time , which results in huge time savings when modifying the project.
Understanding how a component or product assembly reacts under stress or vibration is critical in any industry. However, as products and materials become increasingly complex, engineers need tools that go beyond linear-static analyses. Simcenter provides the structural analysis software you need to simulate a wide variety of applications in a single environment, including analysis of systems subjected to dynamic loading.

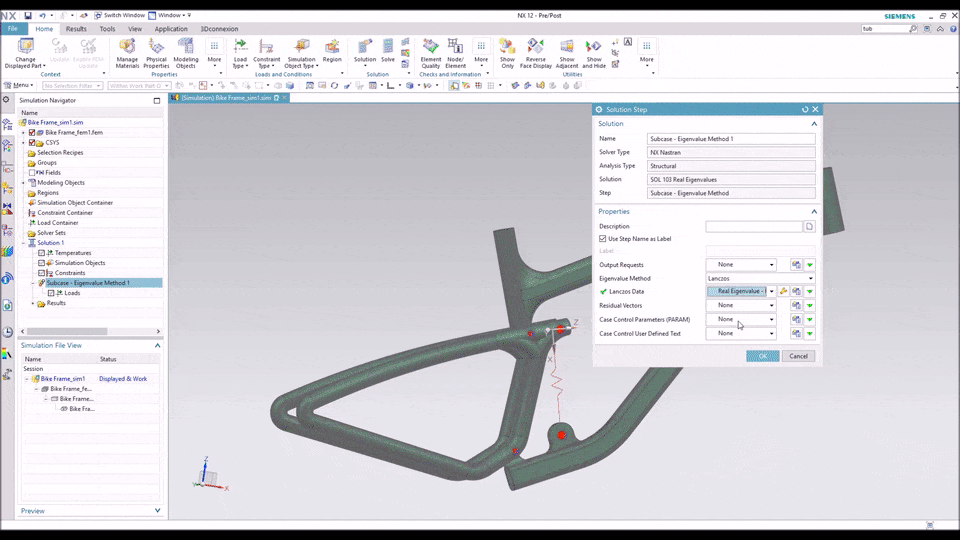

Simcenter Nastran is the leading finite element method (FEM) solver for computational performance, accuracy, reliability, and scalability. NX Nastran includes powerful solutions for linear and non-linear structural analysis, dynamic response, acoustics, rotor dynamics, aeroelasticity, thermal analysis and optimization. The advantage of having all these solutions available in one solver is that the input and output file formats are the same for all solution types, simplifying the modeling processes.
Available as a standalone enterprise solver or as an integrated solver within Simcenter 3D, Simcenter Nastran helps manufacturers as well as engineering vendors in the aerospace, automotive, electronics, heavy machinery, medical device and other sectors with their critical computing needs. engineering so they can produce safe, reliable and optimized designs with ever-smaller design cycles.
Simcenter can enable y
Simcenter can enable you to meet shorter deadlines and reduce structural analysis costs with the ability to perform end-to-end aerostructure assessments in a fully integrated environment.
In the quest to make products lighter and stronger, manufacturers are increasing the use of composite materials. In this regard, Simcenter is at the forefront of composite analysis through the continuous development of material models and element types. In addition, the program also speeds up the entire laminated composite simulation process through a seamless connection to composite design, accurate solvers , and comprehensive post-processing.
Simcenter provides access to state-of-the-art durability method software that allows you to quickly and accurately perform fatigue analysis and fatigue life prediction analysis, accounting for realistic loading conditions.
Simcenter includes distinctive low frequency – Simcenter 3D Low Frequency (LF) – and high frequency – Simcenter 3D High Frequency (HF) electromagnetic simulation capabilities for the unique demands of each domain. Expand your insight into electromechanical component performance, power conversion, antenna design and placement, electromagnetic compatibility (EMC) and electromagnetic interference (EMI).
Motion simulation helps predict reaction forces, torques, velocities, acceleration and more for mechanical and mechatronic systems. Improve engine performance using an accurate and robust 3D multibody dynamic simulation approach.
Complex industrial problems require solutions that span a multitude of physical phenomena, which often can only be solved using simulation techniques that cross multiple engineering disciplines.
The software offers indoor and outdoor acoustic simulation analysis in an integrated solution that helps you make decisions during the early design stages to optimize your product's acoustic performance. A unified, scalable modeling environment combined with powerful solvers and easy-to-interpret visualization capabilities allow you to quickly gain insight into your product's acoustic performance.
Simcenter includes complete, first-class thermal simulation capabilities that masterfully elucidate your product's thermal characteristics and then tailor your thermal management solution for optimal performance.

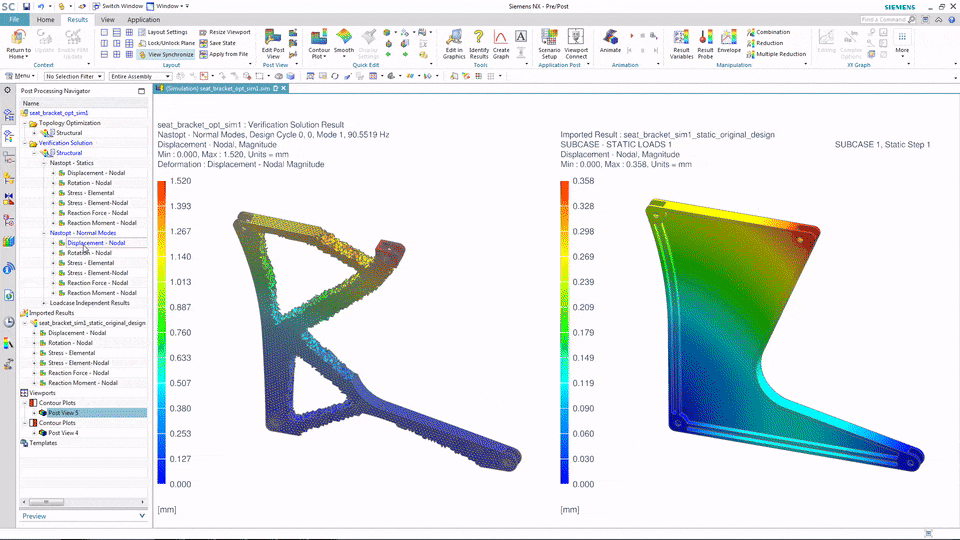

How can I reduce material in a component or change its properties, ensuring it continues to meet performance targets? Simcenter offers engineering optimization techniques that help answer these questions by systematically looking for the best design that satisfies certain criteria. Reduce component weight or find the right combination of parameters to improve product performance through topology, geometry and parameter optimization capabilities.
As companies increase their reliance on simulation, they are looking for ways to speed up the analysis process and increase simulation throughput. One way to increase simulation throughput is to capture repetitive CAE processes, standardize them, and automate them. Simcenter allows you to capture the experience of senior analysts and make it available to junior engineers in your organization for use in the form of wizards or templates.
